Miscellaneous Hardware

Turnbuckles

NOTE:  Measurements in inches are length of turnbuckle, followed by width
No. Image Scale Description Meas. (inches) Qty Price
54 1/4″ SCALE TURNBUCKLES-cored for .025″ wire .200, .060 24 3.30
81054 same in brass 16 sold out
4019 S TURNBUCKLES -cored for .020″ wire .180, .050 12 3.30
4042 same in brass 4 sold out
5039 HO SCALE TURNBUCKLES-cored for .012″ wire .100, .040 24 3.30
86039 same, in brass 16 15.00

Hinges

NOTE:  Measurements in inches are length , followed by width
No. Image Scale Description Meas. (inches) Qty Price
3508 1:48 HINGE ASST–LG
longest hinge (open triangular)
.50 x .100
smallest hinge (open triangular)
.250 x .075
2 sets 3.30

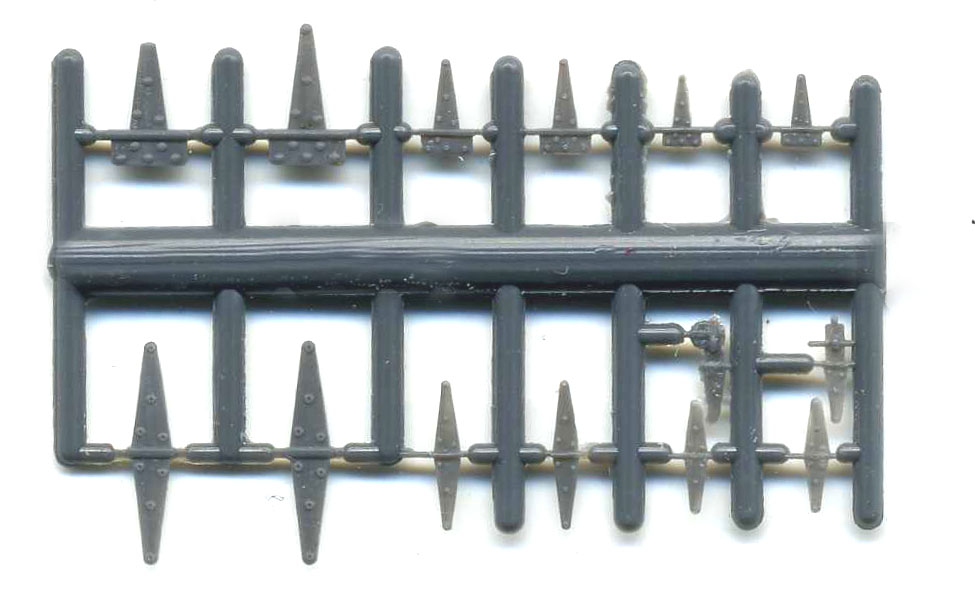

5095 1:87 HINGE ASST–SM longest open hinge is .275″ 2 sets 3.30
3553 1:48 DOOR HINGES 1.335 x .06 48 3.50
3524 1:48 STRAP HINGE–LG .935 x .05 48 3.50
5298 1:87 .570 x .035 48 3.30
5118 1:87 STRAP HINGE–SM longest open hinge is .275″ 2 sets 3.30

Lift Rings/Eyebolts and Rivets: Can be used in all scales

No. Image  Description Meas. (inches) Qty Price
108 LIFT RINGS AND EYEBOLTS center mount: .07″/.065″/.035″ DIA.

side mount:
.065″/.035″ DIA.

ASST 3.30
152 RIVETS- CONICAL HEAD .032″ DIA./shank .015″ 175 3.30
155 .043″ DIA./shank .020″ 175 3.30
157 .063″ DIA./shank .025″ 100 3.30
153 RIVETS- ROUND HEAD .032″ DIA./shank .015″ 175 3.30
154 .043″ DIA. /shank .020″ 175 3.30
156 .063″ DIA./shank .025″ 100 3.30

Nuts and Bolts

These are cast as shown in this sample.  Nuts/bolts are at the ends of the “teeth” of the comb.  To apply to your project, we suggest drilling an appropriate hole to match the “stem” of the bolt, trimming it off of the comb, and finally pressing the stem into your hole.  If cement is necessary, apply it from the inside.

NOTE:  Measurements in inches are across the flat of the nut
No. Image Scale Description Meas. (inches) Qty Price
1 1/4″ 1 1/4″ SQUARE NUT, BOLT, WASHER    .026″ 175 3.30
63 1/4″ 1/2″ SQUARE NUT, BOLT, WASHER .010″ 175 3.30
5045 HO 1″ SQUARE NUT, BOLT, WASHER
9 1/4″ 1″ SQUARE NUT, BOLT .021″ 175 3.30
82 1/4″ 2 1/2″ SQUARE NUT-NO WASHER .052″ 100 3.30
15 1/4″ 1 1/4″ HEX NUT, BOLT  .026″ 175 3.30
127 1/4″ 1 1/2″ HEX NUT, BOLT-NO WASHER .031″ 100 3.30
5135 HO 2 3/4″ HEX NUT, BOLT-NO WASHER
128 1/4″ 2 1/2″ HEX NUT, BOLT-NO WASHER .060″ 100 3.30
18 1/4″ 2 1/2″ NUT ON RECTANGULAR WASHER .052″ 100 3.30
5113 HO  4 1/2″ NUT ON RECTANGULAR WASHER
5094 HO 2 1/2” SQUARE NUT ON CARTER BROS.  ELLIPTICAL WASHER .029″ 100 3.30
20 1/4″ 2 1/2” SQUARE NUT ON CARTER BROS.  ELLIPTICAL WASHER .052″ 100 3.30
44 1/4″ 2 1/8″ SQUARE NUT, 5″ RIBBED WASHER .044″ 20 3.30
62 1/4″ 7/8″ SQUARE NUT, BOLT, CAST IRON WASHER .018″ 175 3.30
5046 HO 1 3/4″ SQUARE NUT, BOLT, CAST IRON WASHER
23 1/4″ 1 1/2″ SQUARE NUT, BOLT, CAST IRON WASHERS .031″ 100 3.30
5123 HO 2 1/2″ SQUARE NUT, BOLT, CAST IRON WASHERS
16 1/4″ 2 1/2″ SQUARE NUT, BOLT, CAST IRON WASHER .052″ 50 3.30
80 1/4″ 2 1/2″ SQUARE NUT ON 6″ SQUARE WASHER .052″ 50 3.30
5096 HO 2 1/2″ SQUARE NUT ON 6″ SQUARE WASHER .024 100 3.30
81 1/4″ 2 1/2″ HEX NUT ON 6″ SQUARE WASHER .052″ 50 3.30
164 1/4″ 2-1/2″ HEX NUT ON 5-1/2″ SQUARE WASHER .052″ 20 3.30
5066 HO 1 1/4″ NUT, 3″ MALLEABLE WASHER .014″ 175 3.30
93 1/4″ 1 1/4″ NUT, 3″ MALLEABLE WASHER .026″ 100 3.30
5093 HO 2-1/2″ NUT, 5″ MALLEABLE WASHER
100 1/4″ 7/8″ NUT,1 3/8″ STEEL WASHER, 1/2″ BOLT .018″ 175 3.30
5100 HO 1 3/4″ NUT,1 2 1/2″ STEEL WASHER
101 1/4″ 1 1/6″ NUT,1 3/4″ STEEL WASHERS, 5/8″ BOLT .022″ 175 3.30
5101 HO 1 7/8″ NUT,1 3/16″ STEEL WASHERS
98 1/4″ 1 1/2″ NUT,2″ STEEL WASHER,3/4″ BOLT .026″ 175 3.30
5098 HO 2 1/2″ NUT,401/2″ STEEL WASHER,
8 1/4″ 1 1/4″ SQUARE NUT, BOLT (1/2 of the casting sprue has the nut/bolt with a washer, 1/2 has no washer) .026″ 175 3.30
99 1/4″ 1 5/8″ NUT, 2 1/2″ STEEL WASHER,1″ BOLT .034″ 100 3.30
5099 HO 3″ NUT, 4 1/2″ STEEL WASHER
139 1/4″ 1 1/2″ NUT WITH 4″ CAST IRON WASHER-CORED FOR .020″ WIRE .031″ 80 3.30
5156 HO 2 1/2″ NUT WITH 6 1/2″ CAST IRON WASHER-CORED FOR .020″ WIRE
162 1/4″ WING NUT ASSORTMENT
4 sizes:  lg (9 ea), med (9ea), small (12 ea), xsmall (12 ea)
lg:  .175″
med:  .135″
sm: .100″
xsm:  .060″
3 SETS 3.30
163 1/4″ STAR NUT, BOLT, WASHERS .075″ 100 3.30
3911 1/2″ HEX NUT ON SQUARE, RIBBED CAST IRON WASHER:  .115″ across the flat of the nut 24 4.00
3912 1/2″ HEX NUT ON ROUND,  CAST IRON WASHER .105″ across the flat of the nut 30 4.00
